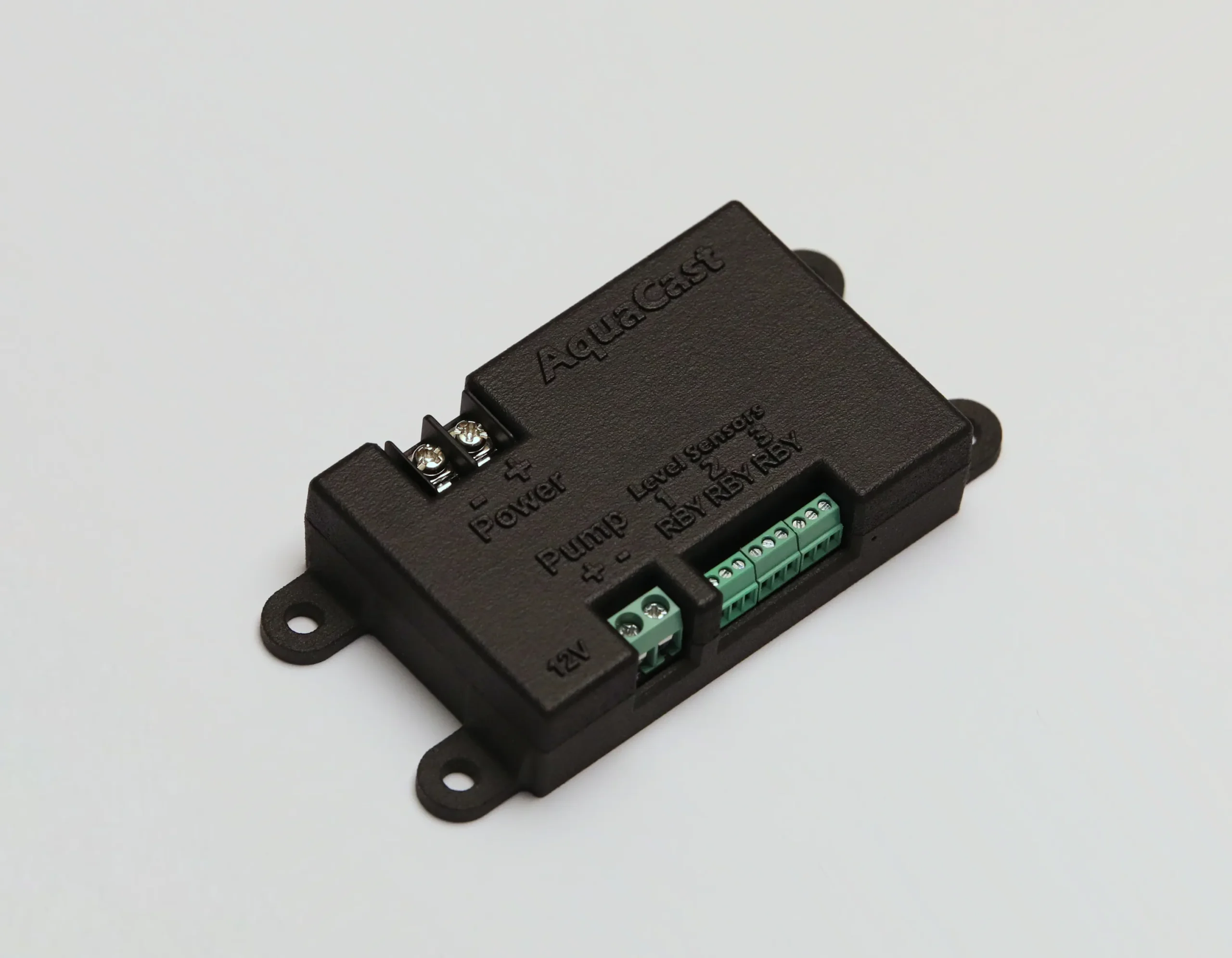

AquaCast is the core interface between your water system hardware and the wireless display. It connects directly to tank sensors and the pump, processes all inputs, and transmits data wirelessly to the AquaViser display—eliminating the need for signal wiring.
Key capabilities
- Supports up to 3 tank level sensors
- Optional water temperature sensor (replaces one tank input)
- Integrated wireless pump control
- Operates on 12V DC
Connectivity

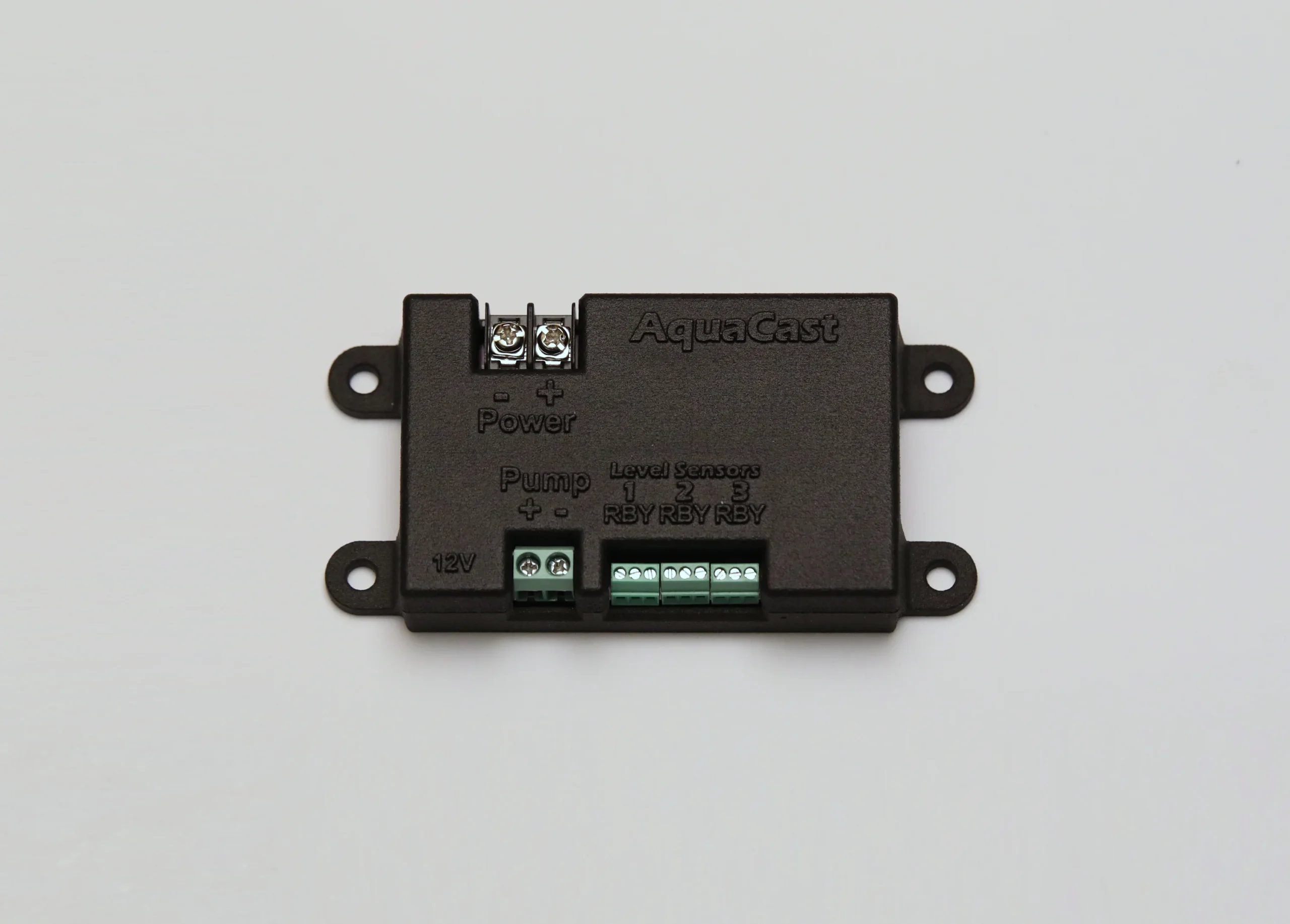

- Screw terminal connections for:
- Power input
- Pump control
- Sensor inputs
- Compatible with 3-wire analog linear signal sensors
- Supports 15K and 20K NTC thermistor for temperature measurement
Design focus
- Clean installation with minimal wiring
- Reliable operation in mobile/off-grid environments
- Flexible configuration for different tank setups
AquaCast is designed to sit close to your tanks and pump, handling all physical connections while communicating wirelessly with the display.
Technical Specifications
| Model Name | AquaCast™ Controller Module |
|---|---|
| Wireless Type | 2.4 GHz - AES 128-bit dynamic encryption |
| Wireless Range | Line-of-sight up to 500 m / through 5 brick walls up to 90 m |
| Operating Voltage | 12 VDC nominal (range: 11.5 – 14.5 VDC) |
| Power Consumption | 0.08 A (not including pump) |
| Recommended Sensors | AquaViser™ Pressure Sensors |
| Compatible Sensors | 12 V (3 wire) Analog linear sensors |
| Maximum Load (pump) Current | 8 A continuous (inrush of 18 A / spikes) |
| Display Interface | AquaViser™ Smart Display module (required) |
| Enclosure Material | High-strength high-temp durable Nylon |
| Certifications/Compliance | CE, RCM, RoHS |
| Dimensions (L × W × H) | 112 × 55 × 23 mm |
